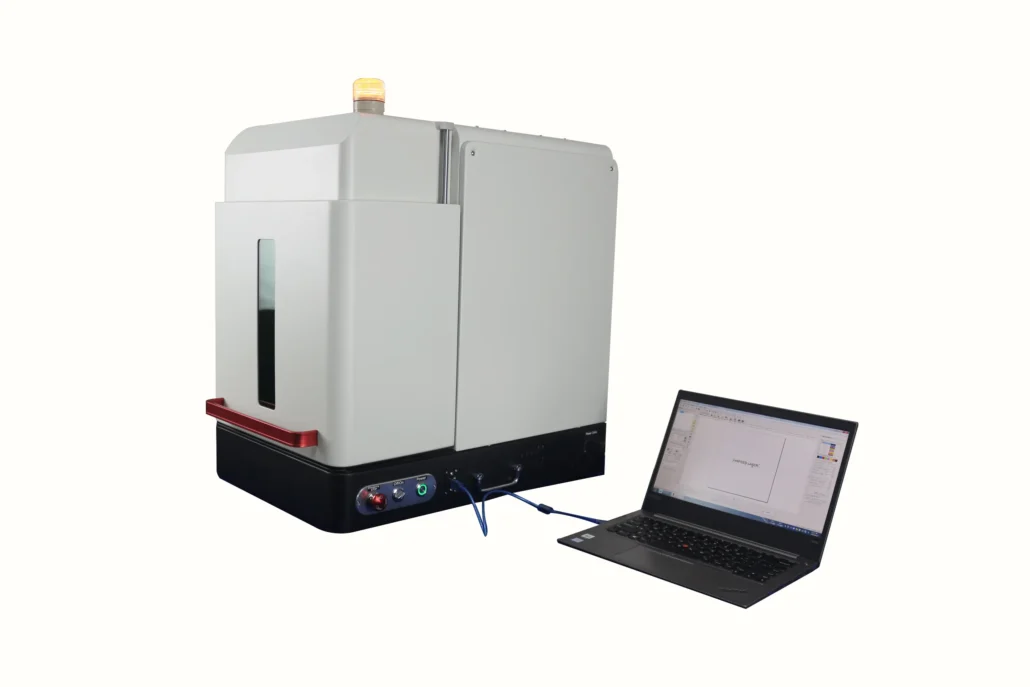

Description of Sliding Door Mini Fiber Optic Laser Engraving Machine
|Power||20W 30W 50W|
|Output Power||10%-100%(continuously to be adjusted)|
|Output Frequency||20KHz-100KHz(continuously to be adjusted)|
|Focus Spot Diameter||<0.01mm|
|Engraving Speed||800 standard characters/second|
|Minimum Line Width||0.012mm|
|Cooling Mode||Air Cooling|
|Power Requirement||110V~ 220V/50Hz~ 60Hz|
|Life of Laser Module||100000Hrs|
The Fiber Laser Marking Machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumable. It’s very cost effective. It boasts fast marking speed and high marking precision. It’s widely used and well accepted in prevailing international market.
Key Information of Enclosed Fiber Laser Marking Machine
Mini Enclosed Fiber Laser Marking Machine
Both metals and some non-metalsMetals: carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel (gold, silver, titanium, etc.); special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)Non-metals: plastics, rubber, resin, carton box, etc.
Fiber Laser Source, Scan Head, F-theta Lens, Marking Main Partslogo, character, serial number, bar code, data matrixFiber Laser Source, Scan Head, F-theta Lens, Marking Software, Computer
Core Parts & Brand & LifetimeCore Parts:
Fiber Laser SourceBrand: IPG, SPI, Raycus, Max, JPT (optional)
Lifetime: 70,000 – 100, 000 hours
Cooling Mode：Air Cooling Continuous
Working Hours：22 hours

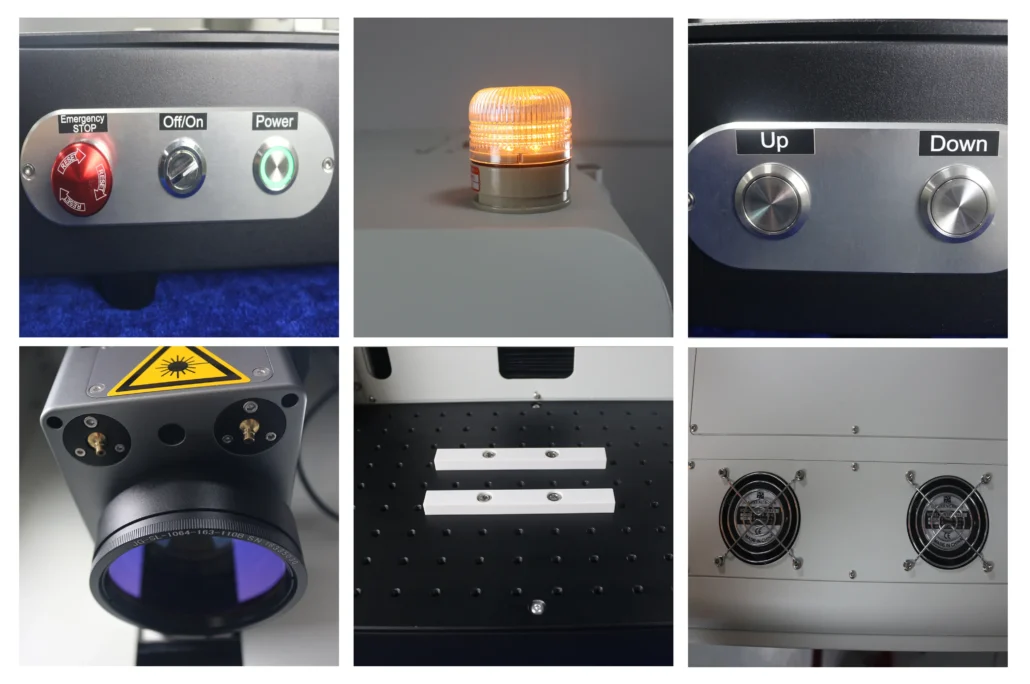

01.Fiber Laser Source:
Machine is standard with famous Raycus brand fber laser source, with expected 100,000 hours life span, support 7 x24 hours work ,Other brand fiber laser source like MaX,JPT,IPG optional.
Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.
Beijing JCZ board card and EZCAD software with stable perfomance and high reliabilit. The machine include computer,before delivery, software and parameter are set.
The laser’s high-speed Galvo-Tech digital galvanometric systerm reduces delays and improves your engraving speed.
Sealed standby cabinet model control system, with USB port and wheels, support moving to any production line or table to mark.
Our engraver comes with EzCad2 software compatible with Windows XP, 7, 8, and 10. It is professional engraving offering stable performance with high relibilit. It’s intuitive and easy to use. It can also use images from AutoCAD, CorelDraw, Adobe llustrator, Photoshop, etc.
After Sales Service
1.All of our machine will be fully-checked by our quality control department before the shipment.We guarantee all of our laser machines have a one-year warranty (quick-wear parts notincluded).
2.Training details: operation principles, system and structure, safety and maintenance, softwarethe processing technique, and so on.
3.Numerous feedback from our clients have proven that our laser machines are stable inperformance with rare malfunction. However, we would like to handle it as follows oncemalfunction occurs:
a.We guarantee that we will give you a clear reply within 24 hours.
b.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.
c.If the malfunction is caused by improper operation on software and other soft faults, we willhelp solve the problem on line.
d.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone. (Training by team viewer)
