UV Laser Engraving Machine Description:
The HiSpeed UV Laser Marking Machine comes in 5W, 10W, and 15W models. It uses third-order intracavity frequency doubling (THG) technology. The 355nm ultraviolet laser has a much smaller laser spot than an infrared laser. This small size leads to a considerable reduction in mechanical deformation. It also limits the heat’s impact to a tiny area. It is mainly used for hyperfine marking and engraving.
UV Laser Engraver Features:

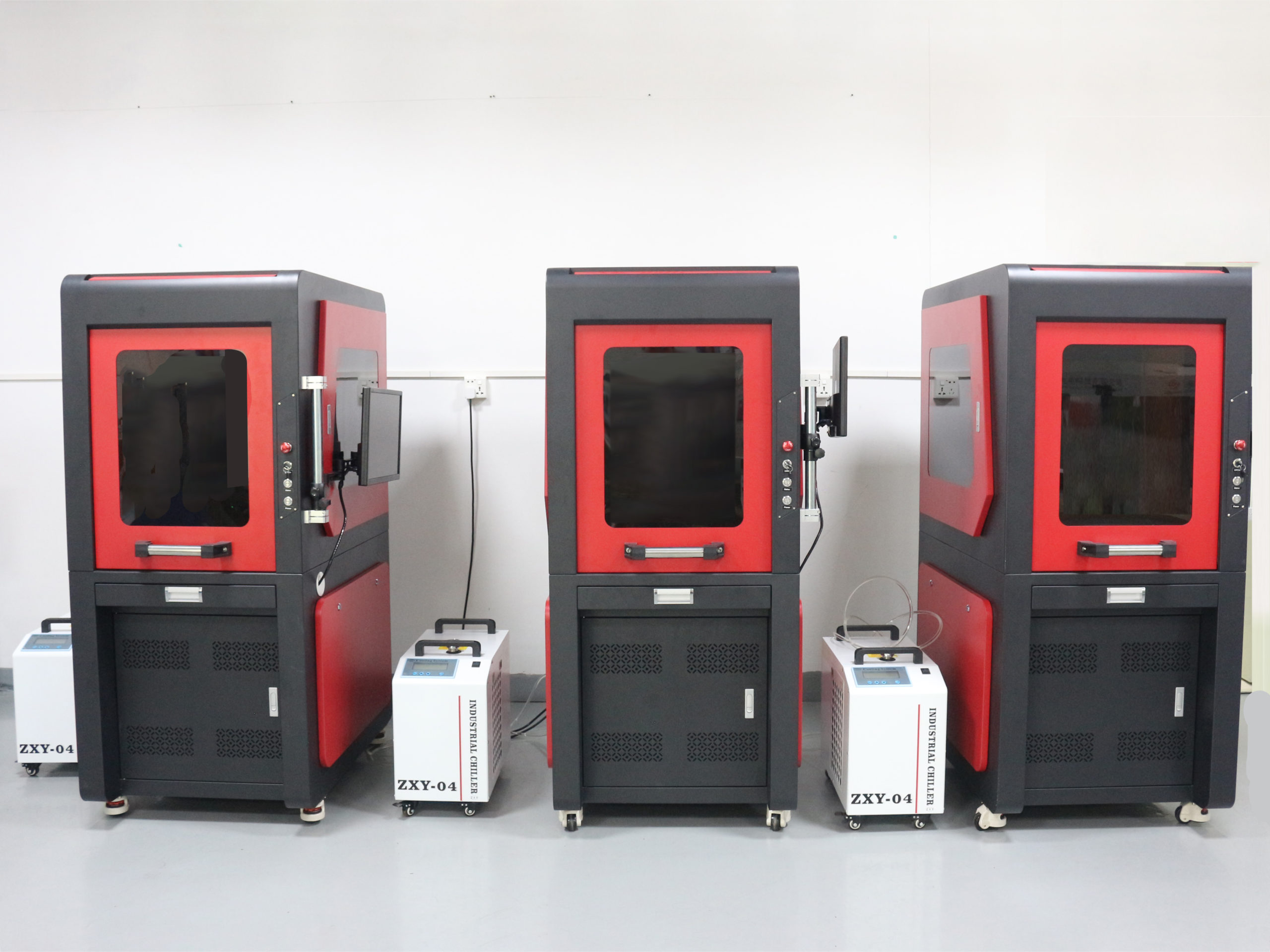

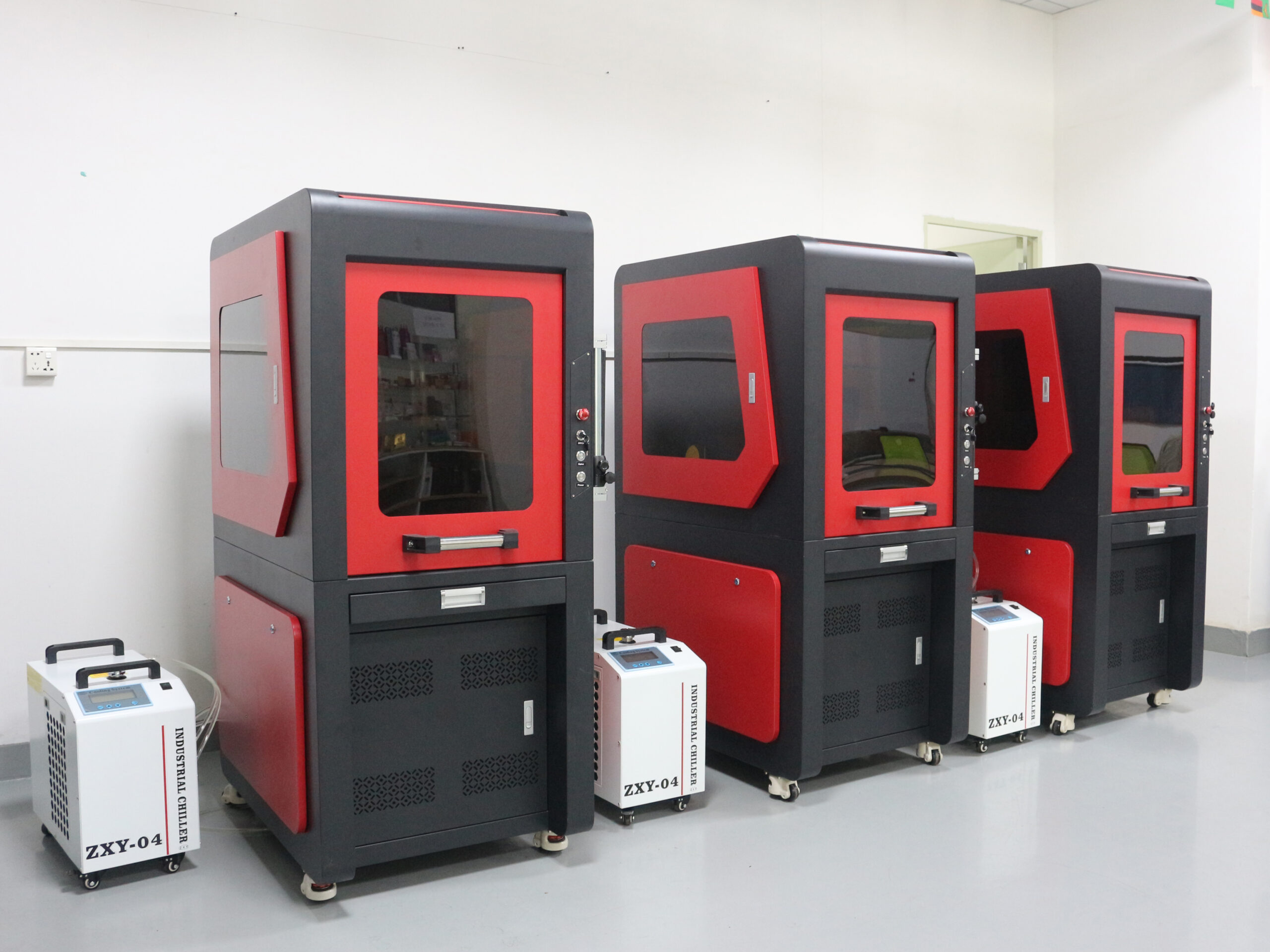

1.Fully Enclosed UV Laser Marking Machine is suitable for fine marking applications that require high precision, good appearance, and better safety, meeting the needs of various products.
2.With low heat impact and fine, clear marking results, it is suitable for materials such as plastic, glass, film, and ceramic, helping improve product appearance and consistency.

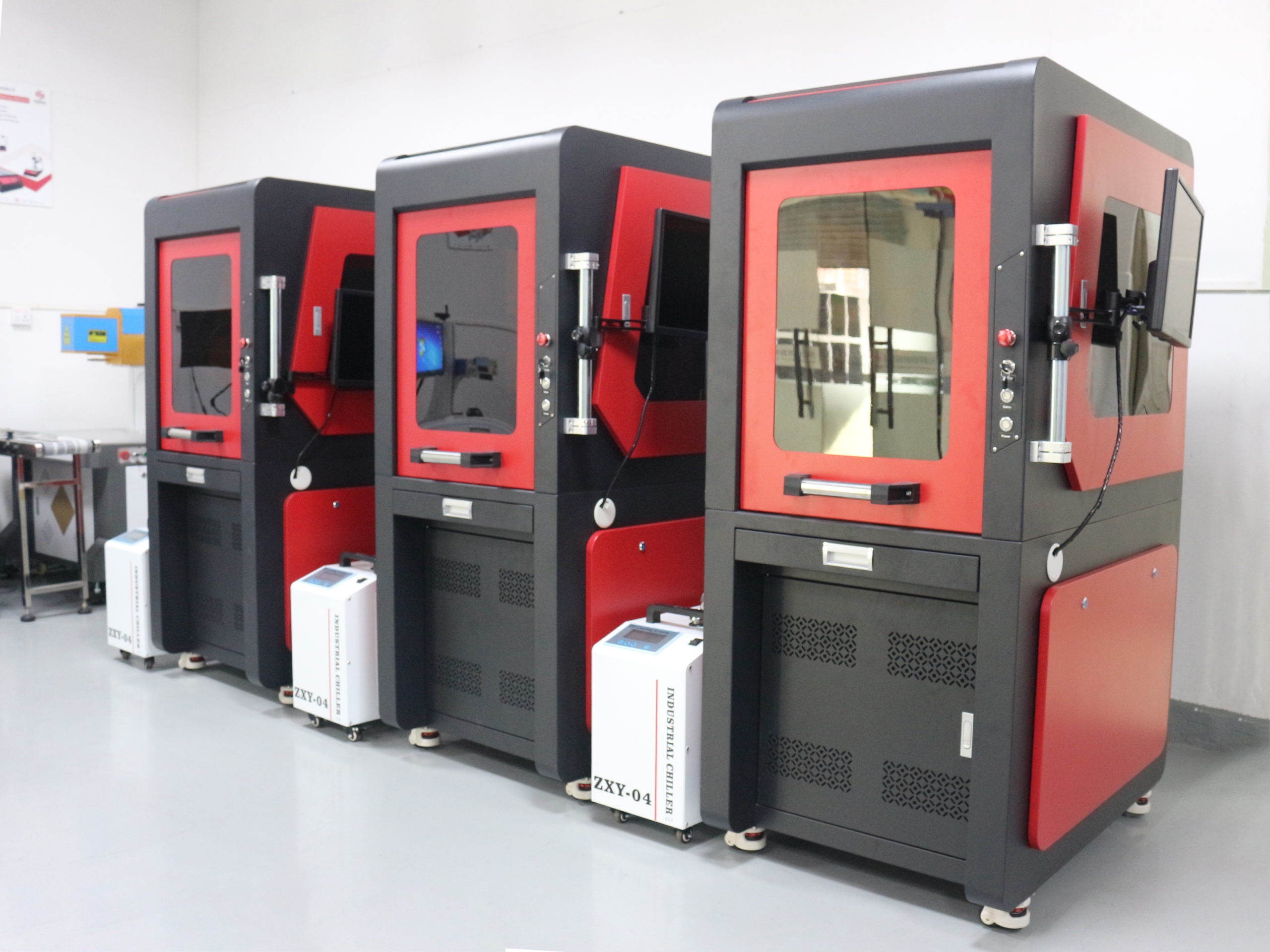

3.The machine features a three-door openable design, making it easier to load and process long products while ensuring flexible operation and better protection. With a stable control system, it also helps improve production efficiency.
UV Laser Marking Machine Accessories：
Technical Parameters:
| Specification | Details |
|---|---|
| Laser Type | UV Laser |
| Laser Power | 5W / 10W / 15W |
| Wavelength | 355 nm |
| Beam Quality | M² < 1.3 |
| Marking Range | ≤ 300 × 300 mm (Optional) |
| Max. Line Speed | ≤ 5000 mm/s |
| Min. Line Width | 0.01 mm |
| Min. Character Size | ≥ 0.05 mm |
| Repeatability | ±2% RMS |
| Cooling Mode | Air Cooling / Water Cooling |
| Power Requirement | 110V–240V, 50Hz–60Hz |
| Net Weight | 203 kg |
| Gross Weight | 217 kg |
| Machine Size | 67 × 100 × 163 cm |
| Wooden Box Dimension | 108 × 80 × 176 cm |
01.UV Laser Source:
Hispeed brand laser source,Coherent,with expected 30,000 hours life span, support 7 x24 hours work
02.Field Lens
Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.
03.Control System
Beijing JCZ board card and EZCAD software with stable perfomance and high reliabilit. The machine include computer,before delivery, software and parameter are set.
04.Galvanometric System
The laser’s high-speed Galvo-Tech digital galvanometric systerm reduces delays and improves your engraving speed.
05.Control System:
Sealed standby cabinet model control system, with USB port and wheels, support moving to any production line or table to mark.
06.Operation Software
Our engraver comes with EzCad2 software compatible with Windows XP, 7, 8, and 10. It is professional engraving offering stable performance with high relibilit. It’s intuitive and easy to use. It can also use images from AutoCAD, CorelDraw, Adobe llustrator, Photoshop, etc.
Sample Show：
Machine Package：
After Sales Service:
1.All of our machine will be fully-checked by our quality control department before the shipment.We guarantee all of our laser machines have a one-year warranty (quick-wear parts notincluded).
2.Training details: operation principles, system and structure, safety and maintenance, softwarethe processing technique, and so on.
3. Numerous feedback from our clients have proven that our laser machines are stable inperformance with rare malfunction. However, we would like to handle it as follows oncemalfunction occurs:
a.We guarantee that we will give you a clear reply within 24 hours.
b. Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.
c. If the malfunction is caused by improper operation on software and other soft faults, we willhelp solve the problem on line.
d.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone. (Training by team viewer)
